AV-A1H8016-P8 – 16CH 4K NVR with 8 PoE Ports & Smart Video Analytics

16CH 4K Ultra HD Recording for crystal-clear multi-camera surveillance.
8 PoE Ports for simplified power and network connectivity over a single cable.
Advanced H.265+/H.265/H.264 Compression to save bandwidth and storage space.
Smart Video Analytics including Line Crossing, Area Detection, and Object Tracking.
Simultaneous Multi-Channel Playback – 4CH 1080P@25fps or 1CH 4K@30fps.

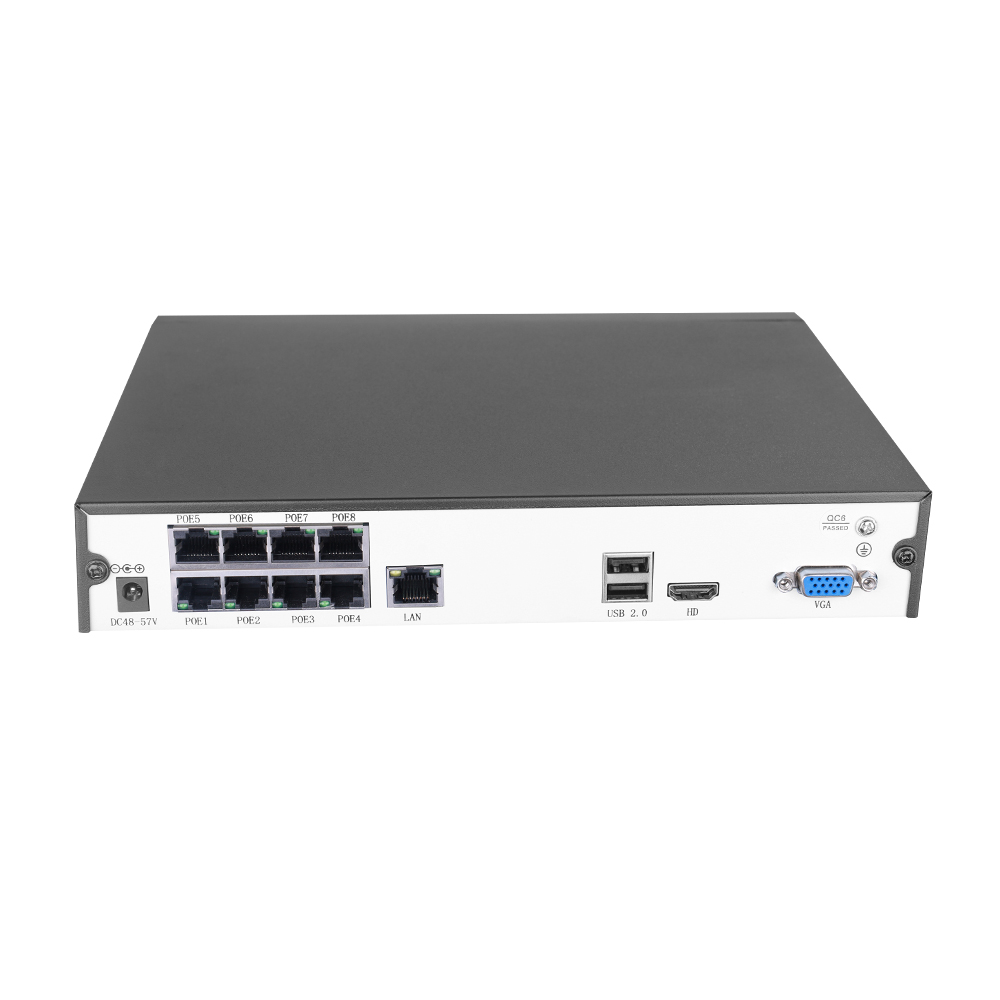

Dual Video Output via HDMI (4K) and VGA (1080P) for flexible display options.
Supports up to 8TB HDD storage for long-term video retention.
Cross-Platform Access via iOS, Android, Windows, and Mac clients.

$250.00

Add to compare

Add to wishlist

Furniture size guidelines

The compact and well-proportioned silhouette of both the seats and the small sofa, opens up to a new way of using the dining space.

A new, more intimate way of opening up new visual and proportional horizons of the living space, both in homes and in hospitality venues.‎

The possibility of having both the armchair and the dining and lounge small armchairs.

Specification	Chair	Armchair	Sofas
Height	37"	42"	42"
Width	26.5"	32.5"	142"
Depth	19.5"	22.5"	24.5"
Assembly Required	No	No	Yes
Packaging Type	Box	Box	Box
Package Weight	55 lbs.	64 lbs.	180 lbs.
Packaging Dimensions	27" x 26" x 39"	45" x 35" x 24"	46" x 142" x 25"

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Description

AV-A1H8016-P8 – 16 Channel 4K NVR with 8 PoE Ports for Professional Surveillance

The HN-A1H8016-P8 is a high-performance 16-channel network video recorder (NVR) designed for advanced security systems. With 8 built-in PoE ports, this NVR simplifies installation by delivering both power and data through a single Ethernet cable to each connected camera.

Ultra HD Video Recording

Enjoy 4K resolution recording for unmatched image clarity. The system supports 4 channels at 1080P or 1 channel at 4K for smooth and detailed playback.

Smart Video Analytics for Enhanced Security

Built-in intelligent functions work with compatible smart IP cameras to detect:

Line crossing
Area intrusion
Object left/removed
People/vehicle counting

These analytics provide accurate alerts, reducing false alarms.

Efficient Storage with H.265+ Compression

The latest H.265+ video compression drastically reduces storage usage and bandwidth requirements without sacrificing video quality.

Flexible Playback & Display Options

Supports 1/4/9/16 split-screen preview and multiple playback modes (normal, fast, slow, zoom). Dual output ports allow simultaneous HDMI (4K) and VGA (1080P) connections.

Remote Access Anywhere

Monitor your security system from any location using the mobile app (iOS/Android) or PC software (Windows/Mac). Cloud connectivity allows one-click online setup.

Built to Perform

Input Bandwidth: 64 Mbps for stable multi-camera streaming
Storage: 1 SATA slot, supports up to 8TB HDD
Power Supply: DC 52V / 2.3A
Compact Size: 220×43×260mm, 1.5kg (without HDD)

Specifications Table

Feature	Details
Model No.	HN-A1H8016-P8
Channels	16CH
PoE Ports	8 Ports
Max Recording Res.	4K
Playback	4CH 1080P@25fps / 1CH 4K@30fps
Compression Formats	H.265+, H.265, H.264
HDD Capacity	1 SATA, up to 8TB
Video Output	1x HDMI (4K), 1x VGA (1080P)
Smart Functions	Line Crossing, Area Detection, Object Left/Lost, Counting
Network Protocols	TCP/IP, DHCP, UDP, SMTP, NTP, UPnP, SNMP, NFS, iSCSI, PPPoE
Mobile Support	iOS, Android
PC Support	Windows, Mac
Power Supply	DC 52V / 2.3A
Weight	1.5kg (without HDD)
