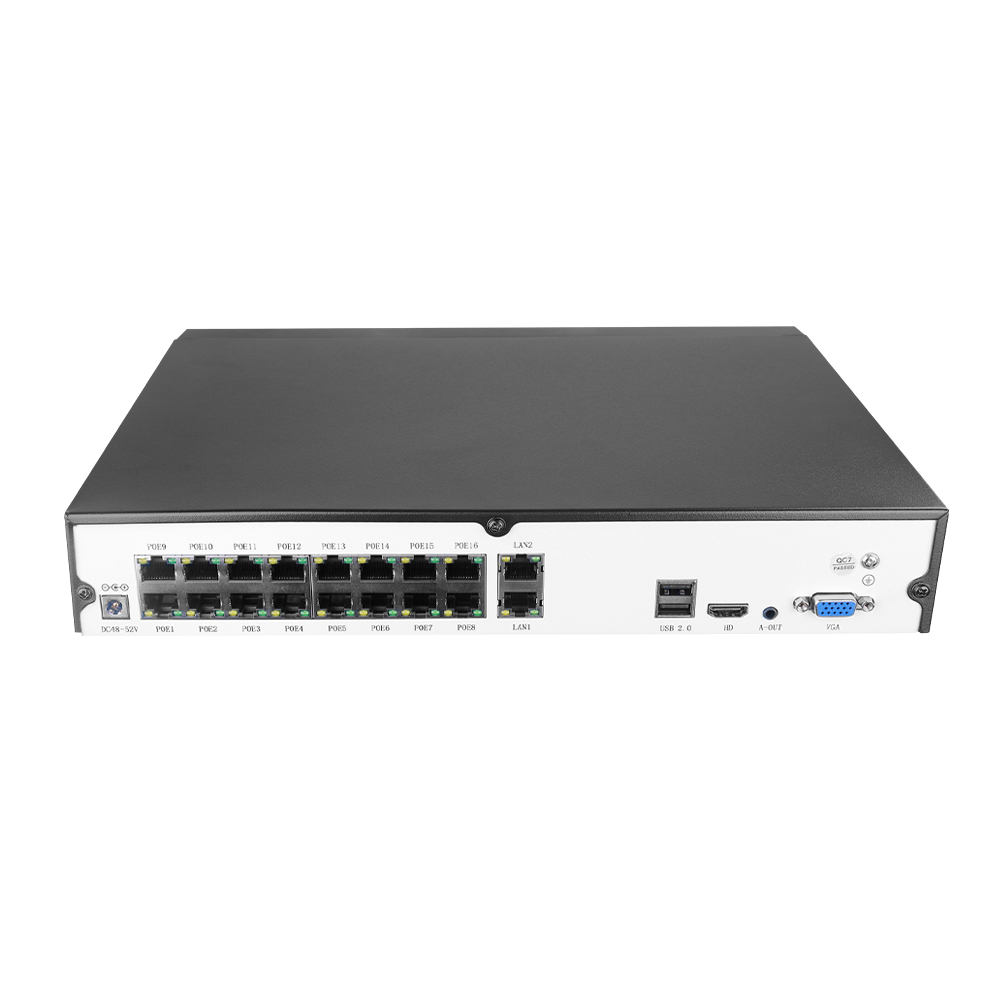

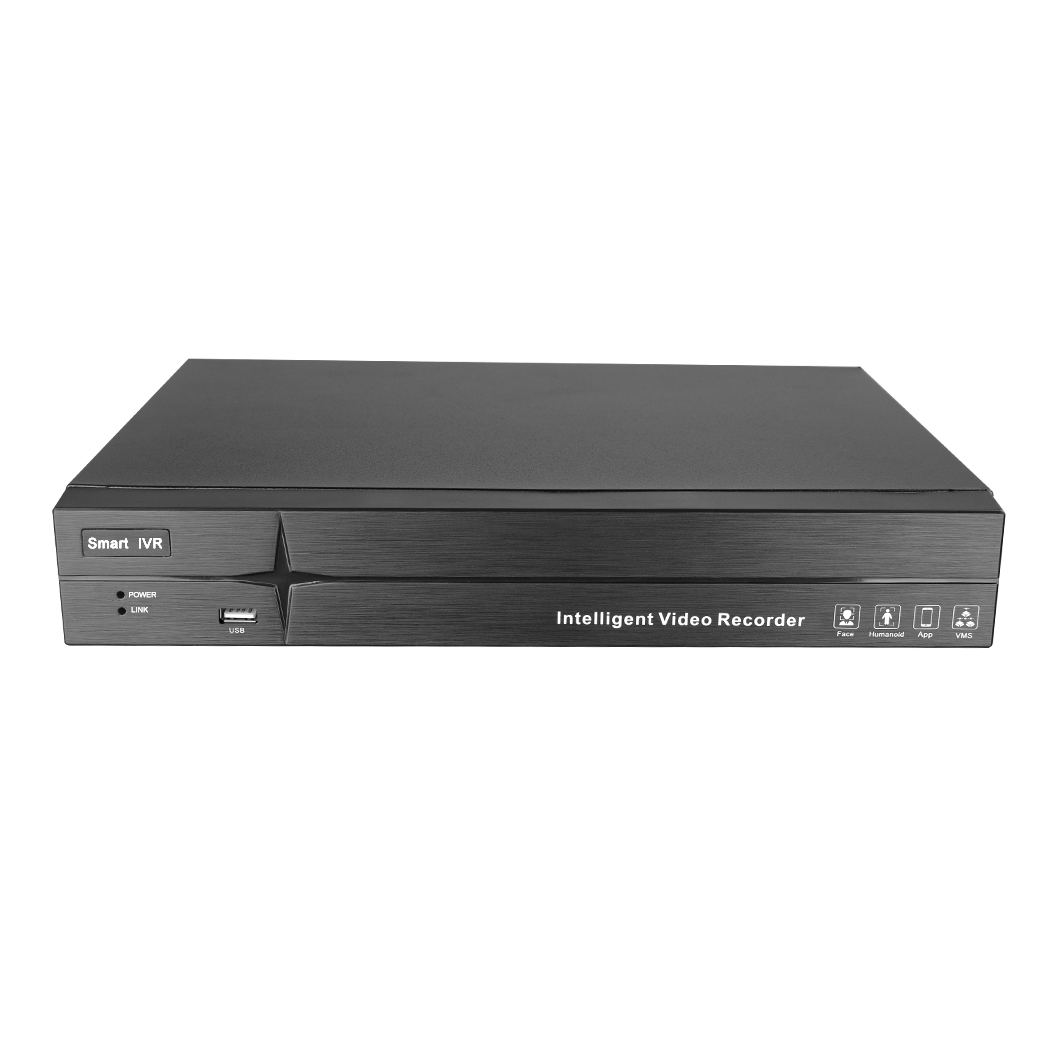

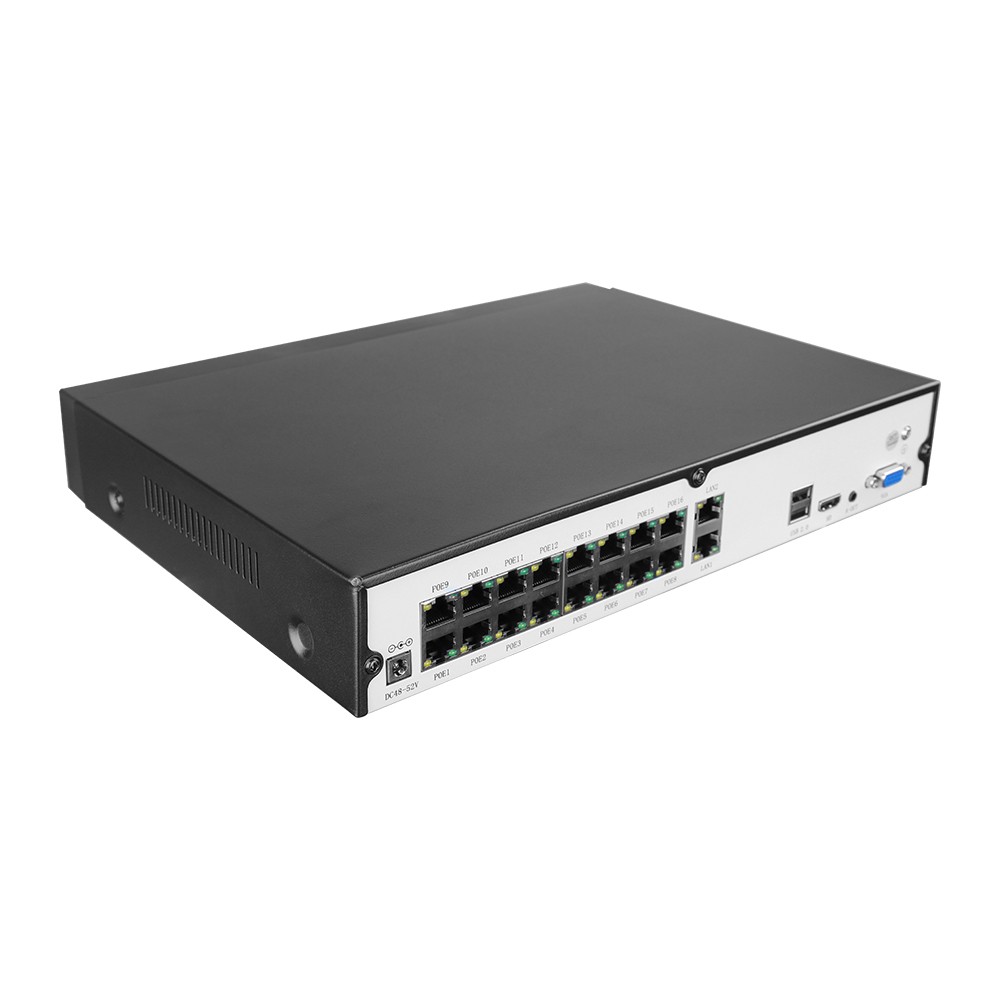

AV-A1H8016-P16 – 16CH 4K NVR with 16 PoE Ports & Smart Video Analytics

16CH 4K Ultra HD Network Video Recorder for professional-grade surveillance.
16 PoE Ports – power and connect all cameras with a single cable per device.
Smart Video Analytics: Line Crossing, Area Detection, Object Left/Removed, People/Vehicle Counting.
Efficient H.265+/H.265/H.264 Compression to save storage and bandwidth.
Multi-Channel Playback – 4CH 1080P@25fps or 1CH 4K@30fps.
Dual Video Outputs – HDMI (4K) & VGA (1080P) for flexible viewing.
Up to 8TB HDD Support for extended video retention.
Cross-Platform Remote Access – iOS, Android, Windows, and Mac.

$450.00

Add to compare

Add to wishlist

Furniture size guidelines

The compact and well-proportioned silhouette of both the seats and the small sofa, opens up to a new way of using the dining space.

A new, more intimate way of opening up new visual and proportional horizons of the living space, both in homes and in hospitality venues.‎

The possibility of having both the armchair and the dining and lounge small armchairs.

Specification	Chair	Armchair	Sofas
Height	37"	42"	42"
Width	26.5"	32.5"	142"
Depth	19.5"	22.5"	24.5"
Assembly Required	No	No	Yes
Packaging Type	Box	Box	Box
Package Weight	55 lbs.	64 lbs.	180 lbs.
Packaging Dimensions	27" x 26" x 39"	45" x 35" x 24"	46" x 142" x 25"

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Description

AV-A1H8016-P16 – 16 Channel 4K NVR with 16 PoE Ports for Complete Surveillance Solutions

The HN-A1H8016-P16 is a high-capacity 16-channel network video recorder with 16 built-in PoE ports, making it ideal for large-scale surveillance systems. Each PoE port supplies both power and network connectivity through a single cable, reducing installation complexity and cost.

Ultra HD 4K Video Quality

Experience crystal-clear 4K Ultra HD recording for enhanced security footage. Playback supports 4 channels at 1080P or 1 channel at full 4K resolution for smooth, detailed video review.

Advanced Smart Video Analytics

Compatible with smart IP cameras, the NVR offers powerful AI-driven analytics, including:

Line crossing detection
Area intrusion alerts
Object left/removed detection
People and vehicle counting

These features improve incident detection while minimizing false alarms.

High-Efficiency Video Compression

Using the latest H.265+ compression, the HN-A1H8016-P16 reduces file sizes and bandwidth usage, maximizing storage capacity without compromising image quality.

Versatile Display & Playback Options

Supports 1/4/9/16 split-screen preview, plus normal, fast forward, rewind, and frame-by-frame playback modes. Dual outputs via HDMI (4K) and VGA (1080P) provide flexibility for different display setups.

Remote Monitoring Anywhere

With built-in cloud support and cross-platform compatibility, the system can be accessed from iPhone, iPad, Android devices, Windows PCs, and Mac computers. iCloud one-click setup ensures easy remote connectivity.

Built for Large Surveillance Systems

16 PoE Ports for powering and connecting all cameras directly.
Input Bandwidth: 64 Mbps for stable multi-camera streaming.
Storage: 1 SATA slot, up to 8TB HDD.
Power Supply: DC 52V / 3A.
Durable Construction: Compact 280×48×324mm design, weighing 2.5kg (without HDD).

Specifications Table

Feature	Details
Model No.	HN-A1H8016-P16
Channels	16CH
PoE Ports	16 Ports
Max Recording Res.	4K
Playback	4CH 1080P@25fps / 1CH 4K@30fps
Compression Formats	H.265+, H.265, H.264
HDD Capacity	1 SATA, up to 8TB
Video Output	1x HDMI (4K), 1x VGA (1080P)
Smart Functions	Line Crossing, Area Detection, Object Left/Lost, Counting
Network Protocols	TCP/IP, DHCP, UDP, SMTP, NTP, UPnP, SNMP, NFS, iSCSI, PPPoE
Mobile Support	iOS, Android
PC Support	Windows, Mac
Power Supply	DC 52V / 3A
Weight	2.5kg (without HDD)
